Motherboards using X399 chipset mainly support TR4 socket AMD Ryzen Threadripper series CPU. Ryzen 2nd Generation CPU contains Zen+ 12nm processor architecture. AMD Ryzen Threadripper 2nd generation processors are developed with higher clock speed, increased power management, and a huge improvement in the number of cores.
Here is the overview of the Ryzen 2nd Generation Threadripper series:
-AMD Ryzen Threadripper 2920x which contains 12 cores, 24 threads, and CPU clock speed 3.5GHz to 4.3 GHz
-AMD Ryzen Threadripper 2950x which contains 16 cores, 32 threads, and CPU clock speed 3.5 GHz to 4.4 GHz
-AMD Ryzen Threadripper 2970WX which contains 24 cores, 48 threads, and CPU clock speed 3.0 GHz to 4.2 GHz
-AMD Ryzen Threadripper 2990WX which contains 32 cores, 64 threads, and CPU clock speed 3.0 GHz to 4.2GHz
Obviously, in this Threadripper 2nd Gen processor lineup the most highlighted one is 2990WX with massive 32 cores and 64 threads. There has been a noticeable upgrade in the 2990WX than the previous 1st Gen series that is capable of 4.2 GHz clock speed.
Here in the second generation Threadripper series we can see the “WX” suffix at the end of the name of two HEDT (high-end desktop) processors. AMD released this WX series as a consumer workstation processor. AMD released these two processors especially for content creators, innovators, 3D modeling, and video editors.
The AMD threadripper 2nd gen X series are mainly for streaming gamers who require more CPU capabilities for 4K live streaming while gaming. AMD has not changed the TR4 socket from the 1st gen to the 2nd gen Threadripper. So anyone with 1st gen Threadripper series processors can move to 2nd gen without changing the motherboard.
All X399 chipset-based motherboards support Ryzen Threadripper 2nd Gen processors. These motherboard CPU combinations provide tremendous overclocking performance and also power consumption. Old X399 motherboards will also support 2nd gen Threadripper CPUs without any issue. They are compatible with the latest BIOS.
As all X399 chipset motherboards are supported by Ryzen Threadripper 2nd gen processors but most of the X399 motherboards have run out of stock. So we carefully picked up 5 currently available X399 motherboards for your Ryzen Threadripper 2nd gen processor. All of the motherboards are award-winning and provide tremendous gaming, overclocking performance, high memory support, triple M.2 support, advanced LAN, audio, connectors, USB, and many other amazing features.

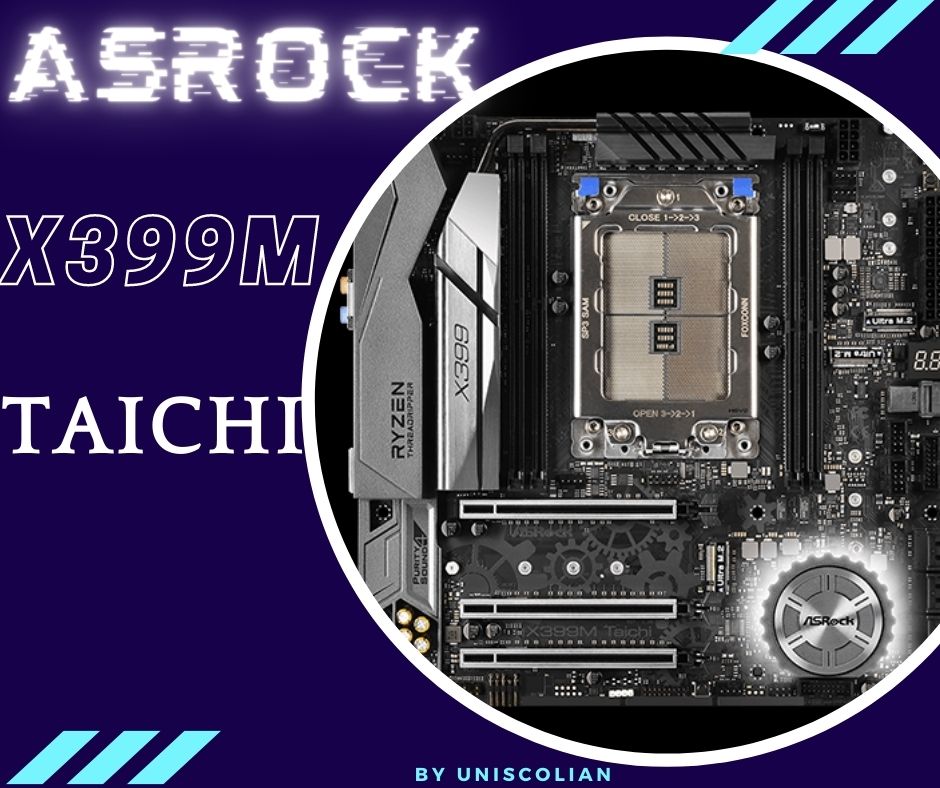

ASRock X399M Taichi
ASRock X399M Taichi is a micro ATX Ryzen Threadripper 2nd Generation motherboard. It takes the X399 massive spec list and tries to slap as much of it as possible onto the micro ATX form factor. This is not an easy task to do. Because X399 is enormous it has 64 PCIe 3.0, quad-channel memory, and up to 12 SATA ports. So we can easily understand why other manufacturers haven’t tried to do what ASRock has done with this motherboard.
This is the only Micro ATX motherboard available for Threadripper CPUs. Many people look for “best micro ATX motherboard for 2950X” and ASRock X399 Taichi is undoubtedly the best answer. This is also one of the cheapest currently available motherboards for Ryzen Treadripper 2950x and other 2nd gen processors. X339M is limited to two PCI express 3.0 two slot cards or three single-slot cards if you are water cooling. X399M is also able to run Quad channel memory. The max DDR4 capacity is cut in half than other X399 motherboards which are only 64 Gigabytes keep that in mind.
Also, there is one DIMM channel for each slot Total of 4 DIMM. Usual X399 motherboards provide two slots per channel. 8 SATA ports are found on the X399M motherboard. There is also a U.2 connector. ASRock managed to squeeze three M.2 slots on the board. One between the first and second PCI express slot. There are another two M.2 slots in the right section. The X399M rear I/O is sufficient 8 x 3.1 gen 1 port, 2 x 3.1 gen 2 port one being type C, Dual Gigabit LAN, 802.11 ac wifi, and a BIOS flashback. The VRM heatsink is pretty sufficient in size and the thin cutouts will help dissipate a lot of heat.
Aesthetically the ASRock X399M Taichi Motherboard looks really great, a nice neutral understated design. Despite being one of the cheaper X399 motherboards in the market it still looks and feels very premium. The RGB lighting is very limited. Only some subtle lighting underneath the chipset heatsink gear. ASRock X33M Taichi is one of the best motherboards for Threadripper 2950x and also 2970WX. This X399 micro ATX board is not recommended for Threadripper 2999WX processor.
Specifications:
| CPU | – AMD TR4 Socket Ryzen Threadripper Series CPUs Supported – Most precise and stable power with IR Digital PWM and also 11 Power Phase design |
| Chipset | – AMD X399 |
| Memory | – Quad Channel DDR4 Memory Technology supported – 8 x DDR4 DIMM Slots Available – Max. Memory Capacity: 128GB |
| BIOS | -Configure with 128Mb AMI UEFI Legal BIOS with GUI, “Plug and Play”, ACPI 5.1, Jumperfree, SMBIOS 2.3 Supported. |
| Graphics | -N/A |
| Audio | – 7.1 CH HD Audio along with Content Protection (Realtek ALC1220 Audio Codec) provided. – Premium Blu-ray Audio support available, Surge protection, Nichicon Fine Audio Caps, 120 SNR DAC, TI NE5532 Headset Amplifier, Direct Drive, PCB Isolate Shielding, Individual PCB Layers, RGB LED, Gold Audio Jacks, and Creative Sound Blaster Cinema 3 supported |
| LAN | -1 x 10 LAN from Gigabit 10/100/1000/2500,5000,10000 Mb/s. – AQUANTIA AQC107 with Wake-On-LAN, Lightning/ESD protection, PXE – 2 x Intel LAN, Wake-On-LAN, Lightning/ESD Protection, Dual LAN with Teaming and Energy Efficient Ethernet Supported. |
| Wireless LAN | -Wifi intel 802.11ac, IEEE 802.11, Dual-Band, wireless communication speed up to 433Mbps -Bluetooth 4.2 / 3.0 supported. |
| Slots | -4 x PCI Express provided 3.0 x 16 Slots and 1 x PCI Express 2.0 x 1 slot. – Available AMD Quad CrossFireX, NVIDIA Quad SLI, 1 x M.2 Socket Vertical and VGA PCIe Slot with Gold Contact. |
| Storage | -8 x SATA3 Connectors with speed 6.0 Gb/s -3 x Ultra M.2 Socket with PCI Express Gen3 x 4 speed 32 Gb/s, 1 x U.2 Connector available |
| Connector | – COM Port, Power LED and Speaker,2 RGB LED Headers – CPU Fan, CPU Water Pump Fan,2 Chassis Fan, Motherboard connectors 24 pin ATX, 8 pin 12V connector, 4 pin 12V connector, Graphics 6 pin connector -Front Panel Audio, Right Angle Audio Connectors, 2 x USB 2.0, 2 USB 3.1 Gen1 Headers – Clear CMOS, Dr. Debug, Power, Reset, CPU Xtreme Switch are provided. |
| Software and UEFI | – F-Stream, RGB LED, Key Master, APP Charger, XFast LAN software available. -Full HD UEFI, Instant Flash, Crashless BIOS, Easy RAID Installer All software and UEFI from ASRock |
| Support CD | -Allows Drivers, Antivirus Software, Google Chrome, Toolbar, and Utilities. |
| Accessories | -Installation Guide, Support CD, I/O Shield, 4 SATA cables, 1 3-Way Bridge Card, 1 4-Way Bridge Card, 1 SLI_HB_Bridge_3S Card, 2 Wifi Antennas, 3 M.2 Socket Screws. |
| Hardware Monitor | -Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, and voltage monitoring are available. |
| Form Factor | -Form Factor is ATX 12-in x 9.6-in x 30.5cm x 24.4 cm.
-PCB Layer 8 and PCB Copper 2oz |
| OS | -Windows 10 from Microsoft 64 bit. |
| Certification | -FCC,CE, ErP/EuP |
Key Features:
1. This Motherboard supports AMD Ryzen TR4 Socket Threadripper Series CPUs.
2. Optimal performance achieved by IR Digital PWM, 11 Power Phase allows unmatched overclocking capabilities & smooth and neat power delivery to the CPU by Dr. MOS
3. DDR4 3600+(OC) supported
4. 3 PCIe 3.0 x16 available with steel slots to prevent signal interference
5. Provided NVIDIA Quad SLI, also AMD Quad CrossFireX
6. 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) purified audio performance with Purity Sound 4, DTS Connect supported
7. 8 SATA3 port, 2 Ultra M.2 (PCIe Gen3 x4) port and 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) triple ultra M.2 for fastest speed
8. 2 USB 3.1 Gen2 (1 Type-A + 1 Type-C) ultra-fast USB port with 10 Gbps Data transfer rate, 12 USB 3.1 Gen1 (4 Front, 8 Rear) ports available
9. 1 U.2 Connector for connecting fastest SSDs
10. Dual-band Intel 802.11ac WiFi provided and twice transmission bandwidth from Dual Intel Gigabit LAN
11. Create Unique PC Style easily with ASRock RGB LED
12. BIOS Flashback supports the latest BIOS with a USB and power supply no CPU/RAM required
Related Article: Best Motherboard for i3 8100

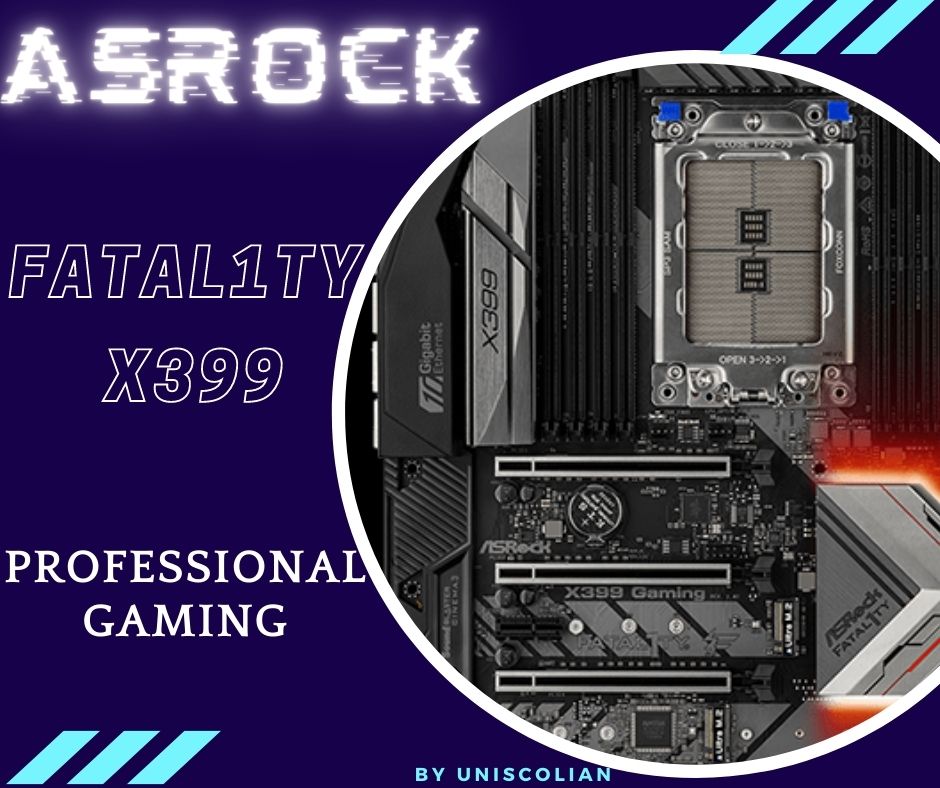

ASRock Fatal1ty X399 Professional Gaming
ASRock Fatal1ty X399 professional gaming is a high-end threadripper motherboard. This is a gaming threadripper motherboard. The threadripper platform was not designed for gaming, it will do gaming pretty competently but it was designed for workstation-based configurations. This X399 motherboard has 60 amp chokes and 10-gigabit AQUANTIA Ethernet. ASRock Fatality X399 is an exceedingly nice motherboard. The layout of this motherboard is very interesting.
There is a single four-pin 12V connector on the top and on the other side of the RAM, there is CPU eight-pin power. In case of overclocking threadripper memory and also rise in memory if we route the CPU power connector over the RAM. As long as we clear the RAM by a decent amount there will be no issue of overclocking. Two CPU power connectors, a 4 pin power connector, and also a Chassis fan header connector. The heatsink has a heat pipe to carry heat to the back part of the motherboard. That’s really good because the VRMs get quite hot while dumping 250 watts to power into the processor. Many people search asking about “best motherboard for threadripper 2990wx” and no doubt ASRock Fatal1ty X399 Professional Gaming motherboard is one of the best answers.
This X399 professional gaming motherboard supports 4 graphic cards. Each graphic card can consume up to 75 watts from the PCI slots. We might not be able to use some of the connections along the bottom of the motherboard if run graphics card because the 4th graphics card hang off the end of the motherboard so ASRock X399 professional gaming motherboard provided a right angle front panel connector for the audio. On the rear I/O, there is a BIOS flash button. We can use it to flash the UEFI on this motherboard.
The software package provided supports up to Sam Black Star Cinema 3. Creative Labs, Sound blaster, audio bundle, audio package all up to Cinema 3. This motherboard has 3 onboard M.2 ports. Two of which are 80 millimeters one is 110 millimeters. All the M.2 slots are directly into the CPU. This is the best possible situation as far as M.2 connectivity goes. There is not really a lot of motherboards to pick from for Treadripper and this is one of the more high-end boards we can get. There is not a lot of threadripper motherboards that actually do have built-in 10-gigabit ethernet which is an amazing feature to have when we have a processor as fast as threadripper.
Specifications:
| CPU | – AMD TR4 Socket Ryzen Threadripper Series CPUs Supported – Most precise and stable power with IR Digital PWM and also 11 Power Phase design |
| Chipset | – AMD X399 |
| Memory | – Quad Channel DDR4 Memory Technology supported – 8 x DDR4 DIMM Slots Available – Max. Memory Capacity: 128GB |
| BIOS | -Configure with 128Mb AMI UEFI Legal BIOS with GUI, “Plug and Play”, ACPI 5.1, Jumperfree, SMBIOS 2.3 Supported. |
| Graphics | -N/A |
| Audio | – 7.1 CH HD Audio along with Content Protection (Realtek ALC1220 Audio Codec) provided. – Premium Blu-ray Audio support available, Surge protection, Nichicon Fine Audio Caps, 120 SNR DAC, TI NE5532 Headset Amplifier, Direct Drive, PCB Isolate Shielding, Individual PCB Layers, RGB LED, Gold Audio Jacks, and Creative Sound Blaster Cinema 3 supported. -1 x 10 LAN from Gigabit 10/100/1000/2500,5000,10000 Mb/s. – AQUANTIA AQC107 with Wake-On-LAN, Lightning/ESD protection, PXE – 2 x Intel LAN, Wake-On-LAN, Lightning/ESD Protection, Dual LAN with Teaming and Energy Efficient Ethernet Supported. |
| LAN | -1 x 10 LAN from Gigabit 10/100/1000/2500,5000,10000 Mb/s. – AQUANTIA AQC107 with Wake-On-LAN, Lightning/ESD protection, PXE – 2 x Intel LAN, Wake-On-LAN, Lightning/ESD Protection, Dual LAN with Teaming and Energy Efficient Ethernet Supported. |
| Wireless LAN | -Wifi intel 802.11ac, IEEE 802.11, Dual-Band, wireless communication speed up to 433Mbps -Bluetooth 4.2 / 3.0 supported. |
| Slots | -4 x PCI Express provided 3.0 x 16 Slots and 1 x PCI Express 2.0 x 1 slot. – Available AMD Quad CrossFireX, NVIDIA Quad SLI, 1 x M.2 Socket Vertical and VGA PCIe Slot with Gold Contact. |
| Storage | -8 x SATA3 Connectors with speed 6.0 Gb/s -3 x Ultra M.2 Socket with PCI Express Gen3 x 4 speed 32 Gb/s, 1 x U.2 Connector available |
| Connector | – COM Port, Power LED and Speaker,2 RGB LED Headers – CPU Fan, CPU Water Pump Fan,2 Chassis Fan, Motherboard connectors 24 pin ATX, 8 pin 12V connector, 4 pin 12V connector, Graphics 6 pin connector -Front Panel Audio, Right Angle Audio Connectors, 2 x USB 2.0, 2 USB 3.1 Gen1 Headers – Clear CMOS, Dr. Debug, Power, Reset, CPU Xtreme Switch are provided. |
| Software and UEFI | – F-Stream, RGB LED, Key Master, APP Charger, XFast LAN software available. -Full HD UEFI, Instant Flash, Crashless BIOS, Easy RAID Installer All software and UEFI from ASRock |
| Support CD | -Allows Drivers, Antivirus Software, Google Chrome, Toolbar, and Utilities. |
| Accessories | -Installation Guide, Support CD, I/O Shield, 4 SATA cables, 1 3-Way Bridge Card, 1 4-Way Bridge Card, 1 SLI_HB_Bridge_3S Card, 2 Wifi Antennas, 3 M.2 Socket Screws. |
| Hardware Monitor | -Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, and voltage monitoring are available. |
| Form Factor | -Form Factor is ATX 12-in x 9.6-in x 30.5cm x 24.4 cm. -PCB Layer 8 and PCB Copper 2oz |
| OS | -Windows 10 from Microsoft 64 bit. |
| Certification | -FCC,CE, ErP/EuP |
Key Features:
1. This motherboard support AMD Ryzen Treadripper Series TR4 Socket CPUs
2. Made with ASRock Super Alloy
3. Super Gaming Armor, best performance with Gaming Power, VGA, Internet, Memory, Cooling Audio.
4. Smooth power delivery with 11 Power Phase, Precise and stable power with IR Digital PWM, and Optimized current and power monitoring with Dr. MOS
5. Quad Channel DDR4 3600+(OC) supported.
6. Amazing performance with 4 PCIe 3 x 16 and 1 PCIe 2 x 1
7. Superb Graphics with NVIDIA 4-way SLI and also AMD 4-Way CrossFireX
8. Realtek Audio Codec supported 7.1 CH HD Audio also Creative Sound Blaster Cinema 3 for the holistic audio experience.
9. SuperSpeed 32Gb/s with 3 Ultra M.2 including PCIe Gen3 x 4 and 8 SATA3
10. 2 USB 3.1 Gen2(type A & C) port with 10 Gb/s speed and 12 USB 3.1 Gen1. Front 4 and Rear 8.
11. U.2 Connector for fastest U.2 PCIe Gen3 x 4 SSD connection.
12. Contains LAN from AQUANTIA with blazingly fast 10 Gigabit/sec speed and twice the bandwidth with Intel Dual LAN.
13. WiFi from Intel 802.11ac and Unique PC style with RGB from ASRock LED
14. Also, BIOS Flashback with only USB and Power Supply and Hyper BCLK Engine lll provided.

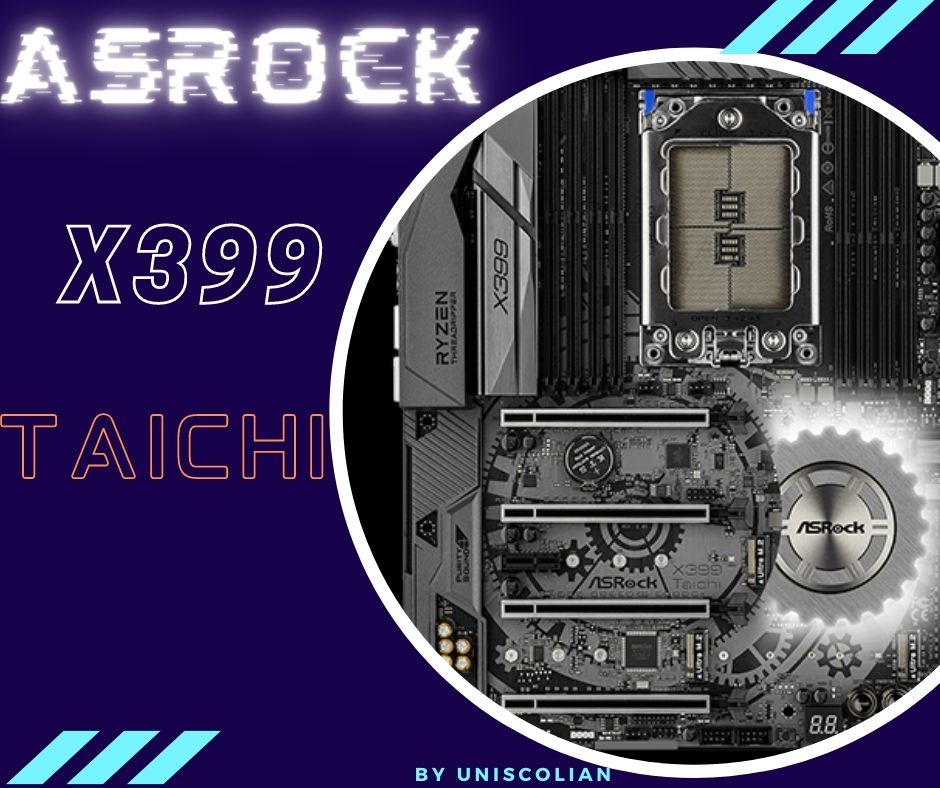

ASRock X399 Taichi
ASRock X399 Taichi is also an amazing TR4 motherboard for Ryzen 2nd Generation Threadripper processors such as 2950X and 2990WX. This motherboard has a secondary heatsink that comes down the side. The MOSFETs are all at the top of the board but the secondary heatsink is connected with the heat pipe just to help cool matters. They chuck a massive heatsink with a heat pipe off down the side to help drop the temperatures down. There are 3 x M.2 ports, 8 SATA ports, also an additional 6 pin PCI Express power connector. There is some lighting around the heatsink but if you are looking for one with lots of lights then this will not be the one for you.
Specifications:
| CPU | – AMD TR4 Socket Ryzen Threadripper Series CPUs Supported – Most precise and stable power with IR Digital PWM also 11 Power Phase design also supported Hyper BCLK Engine lll |
| Chipset | – AMD X399 |
| Memory | – Quad Channel DDR4 Memory Technology supported – 8 x DDR4 DIMM Slots Available – Max. Memory Capacity: 128GB and Gold Contact in DIMM Slots provided |
| BIOS | -Configure with 128Mb AMI UEFI Legal BIOS with GUI, “Plug and Play”, ACPI 5.1, Jumperfree, SMBIOS 2.3 Supported. -Voltage Multi Adjustment with CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8v, VDDP, PROM 2.5V. |
| Graphics | -N/A |
| Audio | – 7.1 CH HD Audio along with Content Protection (Realtek ALC1220 Audio Codec) provided. – Premium Blu-ray Audio support available, Surge protection, also Support Purity Sound 4, Nichicon Fine Audio Caps, 120dB SNR DAC, TI NE5532 Headset Amplifier, Pure Power-In, Direct Drive, PCB Isolate Shielding, Impedance Sensing, Individual PCB Layers, Gold Audio Jacks, Gold Audio Connector and DTS Connect supported. |
| LAN | -LAN form Gigabit 10/100/1000 Mb/s. – 2 x GigaLAN Intel l211AT with Wake-On-LAN, Lightning/ESD protection, Dual LAN with Teaming and Energy Efficient Ethernet, and PXE Supported. |
| Wireless LAN | -Wifi intel 802.11ac, IEEE 802.11, Dual-Band, wireless communication speed up to 433Mbps -Bluetooth 4.2 / 3.0 supported. |
| Slots | -4 x PCI Express Slots provided 3.0 x 16 and 1 x PCI Express 2.0 x 1 slot. – Available AMD Quad CrossFireX, NVIDIA Quad SLI, 1 x M.2 Socket Vertical with bundled WiFi and VGA PCIe Slot with Gold Contact. |
| Storage | -8 x SATA3 Connectors with speed 6.0 Gb/s, RAID Supported. -3 x Ultra M.2 Socket with PCI Express Gen3 x 4 speed 32 Gb/s and 1 x U.2 Connector available |
| Connector | -Headers available of Power LED and Speaker and 2 RGB LED -Connectors available of 1 CPU Fan,1 CPU Water Pump Fan,2 Chassis Fan, 1 Chassis Water Pump Fan. -Connector also of 24 pin ATX, 8 pin 12V Power, 4 pin 12V Power, 6 pin 12V Power, Front Panel Audio, Right Angle Audio. -More Headers of 2 x USB 2.0, 2 USB 3.1 Gen1 -Switches available on Clear CMOS, Dr. Debug, Power, Reset, CPU Xtreme OC. |
| Software and UEFI | -A-Tuning, RGB LED, APP Charger, XFast LAN software available. -Full HD UEFI, Instant Flash, Crashless BIOS, Easy RAID Installer All software and UEFI from ASRock |
| Support CD | -Allows Drivers, Antivirus Software, Google Chrome, Toolbar, and Utilities. |
| Accessories | -Installation Guide, Support CD, I/O Shield, 4 SATA cables, 1 3-Way Bridge Card, 1 4-Way Bridge Card, 1 SLI_HB_Bridge_3S Card, 2 Wifi Antennas, 3 M.2 Socket Screws. |
| Hardware Monitor | -Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, and voltage monitoring are available. |
| Form Factor | -Form Factor is ATX 12-in x 9.6-in x 30.5cm x 24.4 cm.
-PCB Layer 8 and PCB Copper 2oz |
| OS | -Windows 10 from Microsoft 64 bit. |
| Certification | -FCC,CE, ErP/EuP |
Key Features:
1. This super cool motherboard supports AMD TR4 Socket Ryzen Threadripper Series CUPs.
2. Aluminum Alloy Heatsink, Premium Memory Alloy Choke.
3. Precise and stable power with IR Digital PWM, Smooth Power Delivery with 11 Power Phase & smoother and neater power with Dr. MOS
4. Quad Channel DDR4 3600+(OC) & Detect and Correct Error with ECC Memory.
5. Provided 4 PCIe 3 x 16 and 1 PCIe 2 x 1
6. Professional workstation graphics with NVIDIA 4-Way SLI also AMD 4-Way CrossFireX
7. Audio 7.1 CH HD Realtek Audio Codec, also with DTS Connect supported
8. Available 8 SATA3 Ports and Blazing fast 3 Ultra M.2 (PCIe Gen3 x 4 Speed 32Gb/s and SATA3 Speed 6Gb/s)
9. Super Fast 10Gb/s 2 USB 3.1 Gen2 ( Type A+ Type C), 12 USB 3.1 Gen1 ( 4 Front, 8 Rear) also provided.
10. One U.2 Connector for Connecting the fastest U.2 PCIe Gen3 x 4 SSDs
11. SuperSpeed Internet with Intel Dual Gigabit LAN
12. Hi-Speed WiFi with Intel 802.11ac
13. Provided BIOS Flashback, No CPU, RAM Required, and Hyper BCLK Engine lll
Related Article: Best TRX40 Motherboard for AMD Ryzen Threadripper 3960X, 3970X and 3990X
ASROCK X399 Phantom Gaming 6
| CPU | – AMD TR4 Socket Ryzen Threadripper Series CPUs Supported – Up to 180W CPU Supported. Also Contains Digi Power Design and 8 Power Phase Design. |
| Chipset | – AMD X399 |
| Memory | – Quad Channel DDR4 Memory Technology supported – 8 x DDR4 DIMM Slots Available – Max. Memory Capacity: 128GB and Gold Contact in DIMM Slots provided |
| BIOS | -Configure with 128Mb AMI UEFI Legal BIOS with GUI, “Plug and Play”, ACPI 5.1 wake up events, Jumperfree, SMBIOS 2.3 Supported. -Voltage Multi Adjustment with CPU, VCORE, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8v, +1.8 VSB, VDDCR_SOC_S5, PROM 2.5V. |
| Graphics | -N/A |
| Audio | – 7.1 CH HD Audio along with Content Protection (Realtek ALC1220 Audio Codec) provided. – Premium Blu-ray Audio support available, Surge protection, Nichicon Fine Audio Caps, 120dB SNR DAC, NE5532 Headset Amplifier, Pure Power-In, Direct Drive, PCB Isolate Shielding, Impedance Sensing, Individual PCB Layers, Gold Audio Jacks, Gold Audio Connector, and Creative Sound Blaster Cinema 5 Supported. |
| LAN | -1 x 2.5 LAN form Gigabit 10/100/1000/2500 Mb/s also known as Dragon RTL8125AG. – Software from Phantom Gaming LAN, Auto Adjust Bandwidth Control, User-Friendly UI, Network Usage Stat, Optimized Setting, Customized Priority Control, Wake-On-LAN, Lightning/ESD Protection, Efficient Ethernet Supported. -PXE 1 x LAN from Gigabit known as Intel 1211AT, Support Wake-On-LAN, lightning ESD Protection, Energy Efficient Ethernet, PXE supported. |
| Slots | -3 x PCI Express Slots provided 3.0 x 16 – Available AMD Quad CrossFireX, NVIDIA Quad SLI, 1 x M.2 Socket supports WiFi/BT module and VGA PCIe Slot with Gold Contact. |
| Storage | -8 x SATA3 Connectors with speed 6.0 Gb/s, RAID Supported, also NCQ, AHCI, and Hot Plug available. -3 x Ultra M.2 Socket with PCI Express Gen3 x 4 blazing fast speed of 32 Gb/s |
| Connector | -Headers available of 1 TPM, 1 Power LED and Speaker and 2 RGB LED, 1 Addressable LED. -Connectors available of 1 CPU Fan,1 CPU/Water Pump Fan,3 Chassis/Water Pump Fan. -Connector also of 24 pin ATX,2 x 8 pin 12V Power,1 Front Panel Audio,1 Right Angle Audio. -More Headers of 1 x AMD LED Fan, 2 x USB 2.0, 2 USB 3.1 Gen1 -Button available for Clear CMOS, Power, Reset. |
| Software and UEFI | -Softwares available for Phantom Gaming Tuning, Phantom Gaming LAN, more software for Polychrome RGB, Key Master. -Full HD UEFI, Instant Flash, Easy RAID Installer. All software and UEFI from ASRock |
| Support CD | -Allows Drivers, Antivirus Software, Google Chrome, Toolbar, and Utilities. |
| Accessories | -Installation Guide, Support CD, I/O Shield, 4 SATA cables, 1 SLI_HB_Bridge_2S Card, 4 M.2 Socket Screws, 1 Wifi Bracket provided. |
| Hardware Monitor | -Temperature Sensing, Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, and voltage monitoring are available. |
| Form Factor | -Form Factor is ATX 12-in x 9.6-in x 30.5cm x 24.4 cm.
-PCB Layer 8 |
| OS | -Windows 10 from Microsoft 64 bit. |
| Certification | -FCC,CE, ErP/EuP |
Key Features:
1. Phantom Gaming 180W AMD TR4 Socket Ryzen Treadripper X Series CPU Supported.
2. Extra Large Aluminium Alloy Heatsink to Support Monster CPU.
3. Precise and stable power with IR Digital PWM, Smooth Power Delivery with 8 Power Phase & smoother and neater power with Dr. MOS
4. DDR4 3400+(OC) Memory Supported.
5. Provided 3 PCIe 3 x 16 and For WiFi M.2 Key-E support.
6. Graphics with NVIDIA 3-Way SLI, also AMD 3-Way CrossFireX provided
7. Audio Supported 7.1 CH HD, Audio Codec Realtek ALC1220 also Audio Realism, Dynamics and Punch to graming sound with Creative Sound Blaster Cinema 5.
8. Available ports 8 SATA3, Blazing fast 32Gb/s 3 Ultra M.2 with PCIe Gen3 x 4 and 6Gb/s SATA 3 also Full Coverage M.2 Heatsink.
9. AMD StoreMI Technology to combine the speed of SSD with hard Disk.
10. Super Fast Next Generation USB Ports 3 x USB 3.1 Gen2 with 10Gb/s Speed both Type A and Type C. 12 USB 3.1 Gen1 4 in the front and 8 in the Rear.
11. Maximum Networking Performance with 2.5Gb/s LAN from Phantom Gaming and Gigabit LAN from Intel
12. Create your own unique lighting effects with Polychrome RGB SYNC Available.

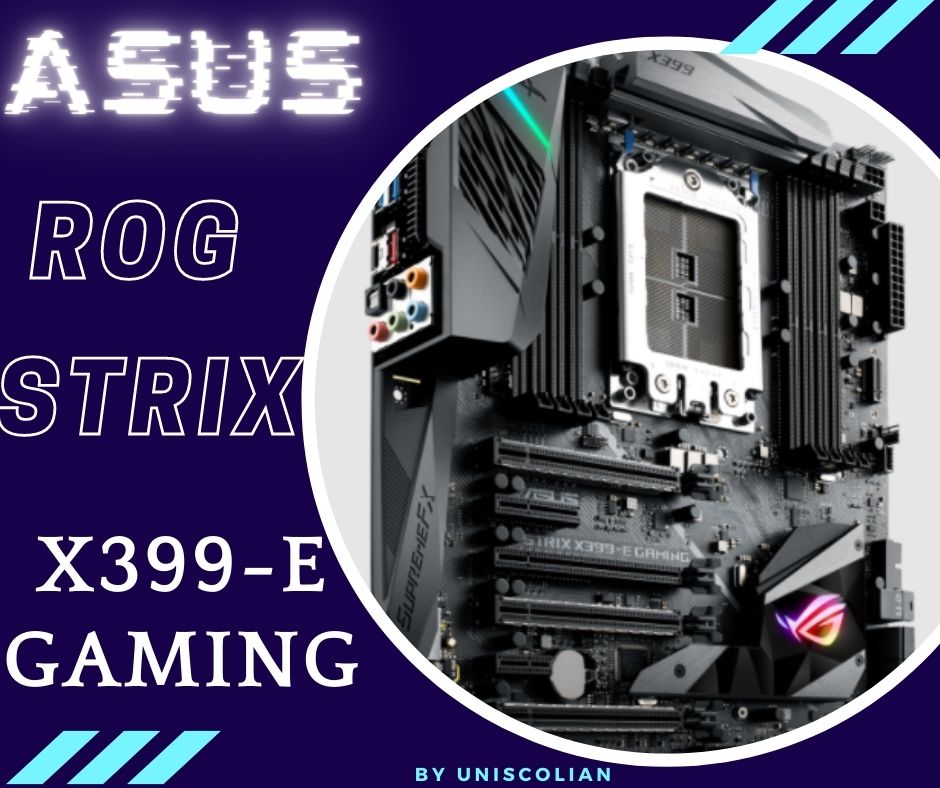

ASUS ROG STRIX X399-E GAMING
Specifications:
| CPU | This Motherboard supports 1st and 2nd Gen AMD Socket TR4 Ryzen Threadripper Series Processors. |
| Chipset | AMD X399 |
| Memory | 8 x DIMM DDR4 RAM, total 8 RAM slots supported. Max Memory support up to 128GB ECC and non-ECC un-buffered memory supported. |
| Multi-GPU | NVIDIA Quad-GPU SLI Technology supported CrossFireX Technology with AMD Quad-GPU 3-way SLI and 2-way SLI from NVIDIA and 3-Way CrossfireX and 2-way CrossFireX from AMD technology supported |
| Expansion Slots | 4 x PCIe slots of 3 x 16 (where single x 16, dual x16/ x16 and triple x16/x16/x8 available. Also 1 x PCIe 2 x 4 (maximum at x4 mode) And 1 x PCIe 2.0 x1 supported |
| Storage | Provided 2 x M.2 Socket 3 along with M key, SATA & PCIe 3 x 4 mode Storage device supported. Raid supported 0,1,10 SATA x 6 speed up to 6 Gb/s |
| Wireless Data Network | Hi-speed Wi-Fi Supported 802.11 a/b/g/n/ac |
| Slots | -3 x PCI Express Slots provided 3.0 x 16 – Available AMD Quad CrossFireX, NVIDIA Quad SLI, 1 x M.2 Socket supports WiFi/BT module and VGA PCIe Slot with Gold Contact. |
| Bluetooth | This motherboard supports Bluetooth V4.2 |
| Audio | -120db High-quality audio line out at the rear and 113db SNR recording input available -Enhance sound quality using an internal audio amplifier -Prevention of electrical noise with EMI protection, save amplifier quality -Reduction of start-up popping noise by using unique de-pop circuit -Multilateral interference is greatly reduced by audio shielding also confirms the precision of analog/digital separation -Maintain sensitive audio signals with dedicated audio PCB layer support. -Warm and natural sound with supreme clarity using premium Japanese audio capacitors. -High Definition Audio CODEC S1220A with ROG SuperemeFX8. -Jack-detection, front panel jack retasking, and jack detection supported. – provided Optical S/PDIF out ports at the back panel also Sonic Radar lll and Sonic Studio lll supported |
| USB Ports | Provided 8 x USB 3.1 Gen 1 port Type A, in the back panel Also, 1 x USB 3.1 Gen 2 port in the mid-board 4 x USB 2.0 port in the mid-board 2 x USB 3.1 Gen 2 ports both type A and type C 4 x USB 3.1 Gen 1 port in the mid-board And USB 3.1 Gen 2 Controller supported from ASMedia |
| Back I/O ports | 2 USB 3.2 Gen 2 both type A and type C, 8 x USB 3.2 Gen 1, 1 x USB BIOS FlashBack button, Wi-Fi and Bluetooth module, 1 x LAN port, 1 x optical S/PDIF out, and 5 Audio jacks. |
| Internal I/O ports | 1 Q_Code, 2 Aura RGB header strip, 1 M.2 Socket 3, 1 M.2 FAN connector, 1 W_Pump connector, 1 ATX power connector, 1 System panel, Thermal sensor connector, Power-on button, Aura addressable strip headers, U.2 port, 2 USB 3.1 Gen 1 speed 5 Gbps, 2 USB 2 1 M.2 socket 3, 6 SATA connector 6 Gbps, CPU Fan connector, CPU OPT Fan connector, Chassis Fan connector x3, AIO_Pump connector, 24-pin EATX power connector, 8 pin ATX power connector, Front panel audio connector, 5 pin EXT_FAN connect, Clear CMOS jumper and USB 3.1 gen 2 connectors on the front panel |
| Accessories | Thermal sensor cable, Extension cable for addressable LED, bracket set for Vertical M.2, cable tie PAC, ROG Fan label, ROG Door Hanger, user manual, ASUS Q Shield, 4 SATA cable, M.2 screw pack, supporting DVD, SLI HB BRIDGE, Q connector, ROG cable Label. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS support, PnP, WfM2, ACPI 6, SM BIOS 3, BIOS with Multi-Language, EZ Flash 3, 3 CrashFree BIOS, EZ Tuning Wizard F11, Q Fan Control at F6, My favourites at F3, PrintScreen and memory information of ASUS DRAM SPD at F12 |
| Manageability | PXE, DMI 3, WOL by PME and WfM 2 |
| Operating System | 64 bit Windows 10 |
| Form Factor | ATX Form Factor Extended 12-inch x 10.6 inch |
Key Features:
1. This motherboard supports AMD Ryzen Threadripper series 1st and 2nd Gen Processors. Ready for gaming, streaming, and more.
2. Aura Sync capable gear of PC, vast portfolio along with Synchronize RGB lighting. In addition with addressable light strips support.
3. This motherboard contains an onboard heatsink for M.2. Which cools down M.2 drive. Provide enhanced reliability and also delivers consistent storage performance.
4. Super gaming connectivity with Intel Gigabit Ethernet, also LANGuard, also supports 2×2 802.11ac Wi-Fi, Dual M.2 supported, Superfast latest USB 3.1 Gen 2 Type-A and Type C connectors supported.
5. The Gaming Audio section comes with SupremeFX S1220A which is teamed with Sonic Studio lll. Get yourself drawn deeper into the action with aural landscape casting.
6. Supreme performance with 5-way optimization. System-wide turning is automated, allowing overclocking, and also supports cooling profiles which are tailor-made for our rig.
7. High durability of Gaming supported. Provide maximum durability with ASUS SafeSlot and premium quality components.
Frequently Asked Questions
- Is Threadripper 2950X good for gaming?
- The threadripper platform is not built for gaming, it will do gaming pretty well but Threadripper 2950X is not recommended only for gaming. Even after providing the best possible gaming performance, Threadripper 2950X will left more processing capabilities for Livestream, capture gameplay, video encoding, or any other high-performance task. Threadripper platform is meant for High-end desktop workstation performance.
- Is Threadripper better than Ryzen?
- Threadripper is not just a processor with a high core and thread count. They have a huge advantage over the traditional Ryzen CPUs.
- Which motherboard is best for Ryzen Threadripper 2990WX?
- ASRock X399 Taichi is the best ATX motherboard for Ryzen Threadripper 2990WX.
- What is Threadripper used for?
- Threadripper platform is developed by AMD for High-end Desktop HEDT workstation setup. Streaming digital content creation, Gaming with streaming, 3D rendering, CAD works, video editors, etc. are the fields where Threadripper shines.
- Is the Ryzen Threadripper worth it?
- If you are looking for an absolute high-end content creation workstation machine then Ryzen Threadripper is worth every penny.
